Thin Film Chip Resistors
Wire bondable thin film ceramic chip resistors in multiple configurations
Depending on the ceramic dielectric used and electrode configuration, we use different metal stacks to achieve best mechanical and electrical performances. The different stacks we may use are as follows.
Top |
TaN – TiW – Au |
Bottom |
TiW – Pt – Au |

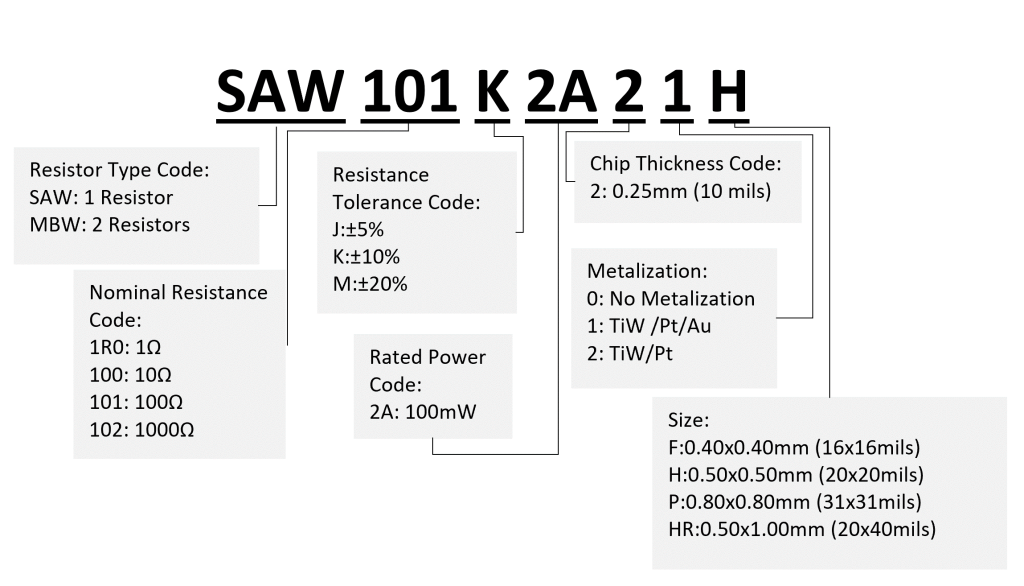

| Part Number | (Ω) Tolerance +/- 10% | Sheet Resistance (Ω) | Size (mils) L × W |
Size (mm) L × W |
Design Series |
| SAW100K2A21H | 10 | 100 | 20 × 20 | 0.50 x 0.50 | SA Series – 1 |
| SAW250K2A21F | 25 | 250 | 16 × 16 | 0.40 x 0.40 | SA Series – 1 |
| SAW250K2A21H | 25 | 250 | 20 × 20 | 0.50 x 0.50 | SA Series – 1 |
| SAW500K2A21F | 50 | 500 | 16 × 16 | 0.40 x 0.40 | SA Series – 1 |
| SAW500K2A21H | 50 | 500 | 20 × 20 | 0.50 x 0.50 | SA Series – 1 |
| SAW500K2A21HR | 50 | 500 | 20 × 40 | 0.50 x 1.00 | SA Series – 1 |
| SAW500K2A21P | 50 | 500 | 31 × 31 | 0.80 × 0.80 | SA Series – 1 |
| SAW750K2A21HR | 75 | 750 | 20 × 40 | 0.50 × 1.00 | SA Series – 1 |
| SAW101K2A21H | 100 | 101 | 20 × 20 | 0.50 x 0.50 | SA Series – 1 |
| SAW101K2A21HR | 100 | 101 | 20 × 40 | 0.50 × 1.00 | SA Series – 1 |
| SAW201K2A21H | 200 | 201 | 20 × 20 | 0.50 x 0.50 | SA Series – 2 |
| SAW102M2A21H | 1000 | 102 | 20 × 20 | 0.50 x 0.50 | SA Series – 3 |
| MBW200K2A21P | 10 × 2 | 200 | 31 × 31 | 0.80 × 0.80 | MB Series |
| MBW250K2A21P | 12.5 × 2 | 250 | 31 × 31 | 0.80 × 0.80 | MB Series |
| MBW500K2A21P | 25 × 2 | 500 | 31 × 31 | 0.80 × 0.80 | MB Series |
| MBW750K2A21P | 37.5 × 2 | 750 | 31 × 31 | 0.80 × 0.80 | MB Series |
| MBW101K2A21P | 50 × 2 | 101 | 31 × 31 | 0.80 × 0.80 | MB Series |
Please contact us for other sizes and metallization schemes.
Note: If you have custom specifications you wish to satisfy then Tecdia can tailor the dimensions, dielectric constant, capacitance, TC and other options to match target capacitance options desired. For immediate assistance just give us a call at 408-748-0100 (USA) or contact us electronically using our contact form, tell us your requirements and we will find you the perfect part for you.
–100 + / –50 ppm / ° C (@ –55 ° C to + 85 ° C)
100 mW @ <70 ° C
320 ℃ × 5min Max N2 in gas atmosphere
